The 5-Step Guide to Selecting Your Single-Mode Cable

Follow this expert process to choose the right single-mode fiber for your project.

Step 1: Choose the Correct Specification (OS1 vs. OS2)
This is the most critical decision. OS1 is designed for tight-buffered indoor applications with a maximum distance of 10 km. OS2 is the standard for loose-tube, outdoor, and long-distance (>10 km) installations. For virtually all outdoor and conduit installations, you must choose an OS2 single-mode Fiber- kablo optikoa.

Step 2: Determine the Fiber Count
Plan for the future. While you might only need one pair (two fibers) for a current link, pulling a cable with higher fiber count (e.g., 12, 24, or 144) is cheap insurance. The cost of the cable is often negligible compared to the labor cost of installation.

Step 3: Select the Right Cable Jacket
The jacket protects the delicate glass fibers.

• Barnean: Use OFNR (Riser) or OFNP (Plenum) rated jackets for fire safety.

• Kanpoko atea: Choose black polyethylene jackets that are UV, moisture, and abrasion-resistant.

• Armored: In direct burial or rodent-prone areas, an armored single-mode fiber cable with a corrugated metal tape is essential.

Step 4: Plan Your Connector Types

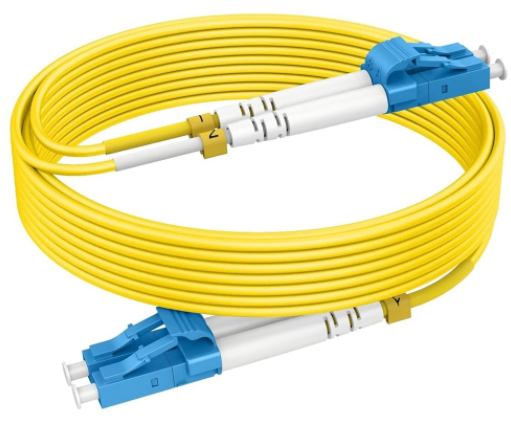

LC connectors are the modern standard for their small size, allowing high port density. SC connectors are also common but larger. Ensure your patch panels, transceivers, and patch cables all use the same connector type for a seamless installation.

Step 5: Verify Compatibility with Your Equipment
Check the wavelength requirements of your existing optical transceivers (commonly 1310nm or 1550nm). Any standard single-mode fiber optic patch cable will support these, but it's a crucial final check.

Installation Secrets: Handling and Splicing

Installing single-mode fiber requires precision. The small core size means alignment for splicing must be perfect. Fusion splicing is the preferred method for permanent, low-loss connections. Always maintain the minimum bend radius—typically 20 times the cable diameter. Exceeding this can cause micro-bends that attenuate the signal or even break the fiber.

⚠️ Warning: Never pull on the fibers themselves. Always use the strength members (aramid yarn/kevlar) within the cable for tension during pulling. "Cable pulling eyes" should be attached to the strength member, not the fiber.

Testing and Certification: Ensuring Performance

After installation, you must test your links. An Optical Time-Domain Reflectometer (OTDR) is used for this. It sends a light pulse down the fiber and analyzes the backscattered light to create a "signature" of the cable, identifying the location and loss of splices, connectors, and any faults.

Your Pre-Installation Single-Mode Fiber Checklist

☑️ Spec Confirmed: OS2 cable selected for outdoor/long-distance runs.
☑️ Fiber Count: Chosen a count that accommodates future growth.
☑️ Jacket Type: Selected outdoor, armored, or riser/plenum jacket as needed.
☑️ Connectors: LC or SC connectors specified and ordered.
☑️ Path Planned: Route avoids sharp bends and potential damage points.
☑️ Splicing Plan: Fusion splicer and technician arranged for termination.
☑️ Test Gear: OTDR or power meter/light source booked for certification.

Mastering single-mode Fiber- kablo optikoas is a valuable skill. By focusing on the correct specification, robust construction, and careful handling, you can build incredibly fast and reliable network backbones that will serve for decades.

Frequently Asked Questions (FAQs)

Q1: Can I use single-mode fiber for short distances inside a building?
A1: Absolutely. While it may be overkill, using single-mode fiber inside a building is common for future-proofing. It allows for a seamless connection to outside plant fiber and supports any future bandwidth need without re-cabling.

Q2: What is the actual difference between OS1 and OS2 single-mode fiber?
A2: The key difference is in the attenuation specification. OS1 has a maximum attenuation of 1.0 dB/km, while OS2 is a tighter 0.4 dB/km. OS2 is also optimized to eliminate hydrogen-induced attenuation, making it stable for outdoor environments over 25 years.www.adsscable.cn

Q3: Are single-mode and multi-mode connectors the same?
A3: The connector types (LC, SC) are the same and will physically fit. However, the alignment is different due to the core size mismatch. You should never plug a multi-mode transceiver into a single-mode fiber cable, or vice versa, as it will cause severe signal loss.

www.adsscable.cn

Q4: How fragile is a single-mode Fiber- kablo optikoa?
A4: The glass fiber inside is very fragile. However, the cable itself is remarkably strong. The protective jackets, strength members, and (if applicable) armor are designed to withstand significant crush force, tension, and environmental stress, protecting the delicate fibers within.

Q5: What is the typical lifespan of an installed single-mode fiber cable?
A5: The designed lifespan for a quality single-mode fiber cable installation is over 25 years. The glass itself does not degrade over time. The long-term performance relies on the stability of the cable jacket, seals, and the quality of the initial splices and terminations.
